- With a maximal lifting capacity of 1.0T, a rise height of 1200mm and the platform being as wide as 800mm, it is fit for service and repair to various sizes of motorcycle. Surface mounting.
- Built-in power unit. Good looking and space saving.
- Rising and lowering movement is easily done using a magnetic hand-held control unit with 24V operative voltage.
- Electrical release device. It is very convenient to disengage the mechanical locking unit for lowering operation.
- The ramp is made as low as an angle of 10 degrees for easier drive-on.
- The drop-down plates are available at both ends of the plaorm for model EE-MLH10D.
- The drop-down plate is available at the rear side of the lifting platform for model EE-MLH10.
- Robust and automatic mechanical locking device.
- Protective device against leakage. No unexpected collapse in case of oil hose breakage.
- Hydraulically protected against overloading.
- Standard manually-operated wheel-clamping device. Its width is adjustable so as to fit the most types of tyres.
- Tool tray at both sides.
- Each side of the lifting platform is reserved with 4 slots for binding straps so as to satisfy stability requirement in various working circumstances.
| Model No. | MLH10D |
|---|---|
| Rated load | 1.0T |
| Platform length | 2200mm |
| Platform width | 800mm |
| Rise height | 1200mm |
| Initial height | 195mm |
| Rise time | Approx.30s |
| Voltage | 220V |
| Power | 0.75kW |

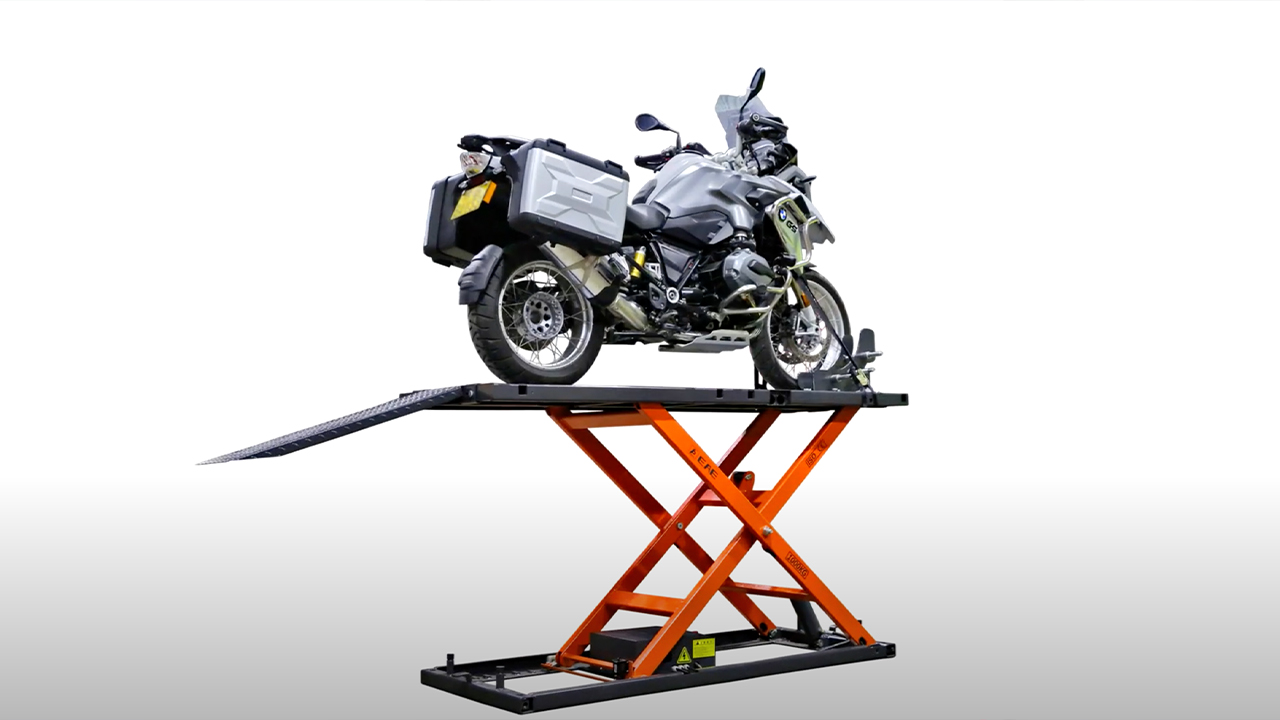

* Machine shown with optional equipment. Actual product appearance may differ.
- EE-MLH10D Brochure Download
- Instruction Manual Download
